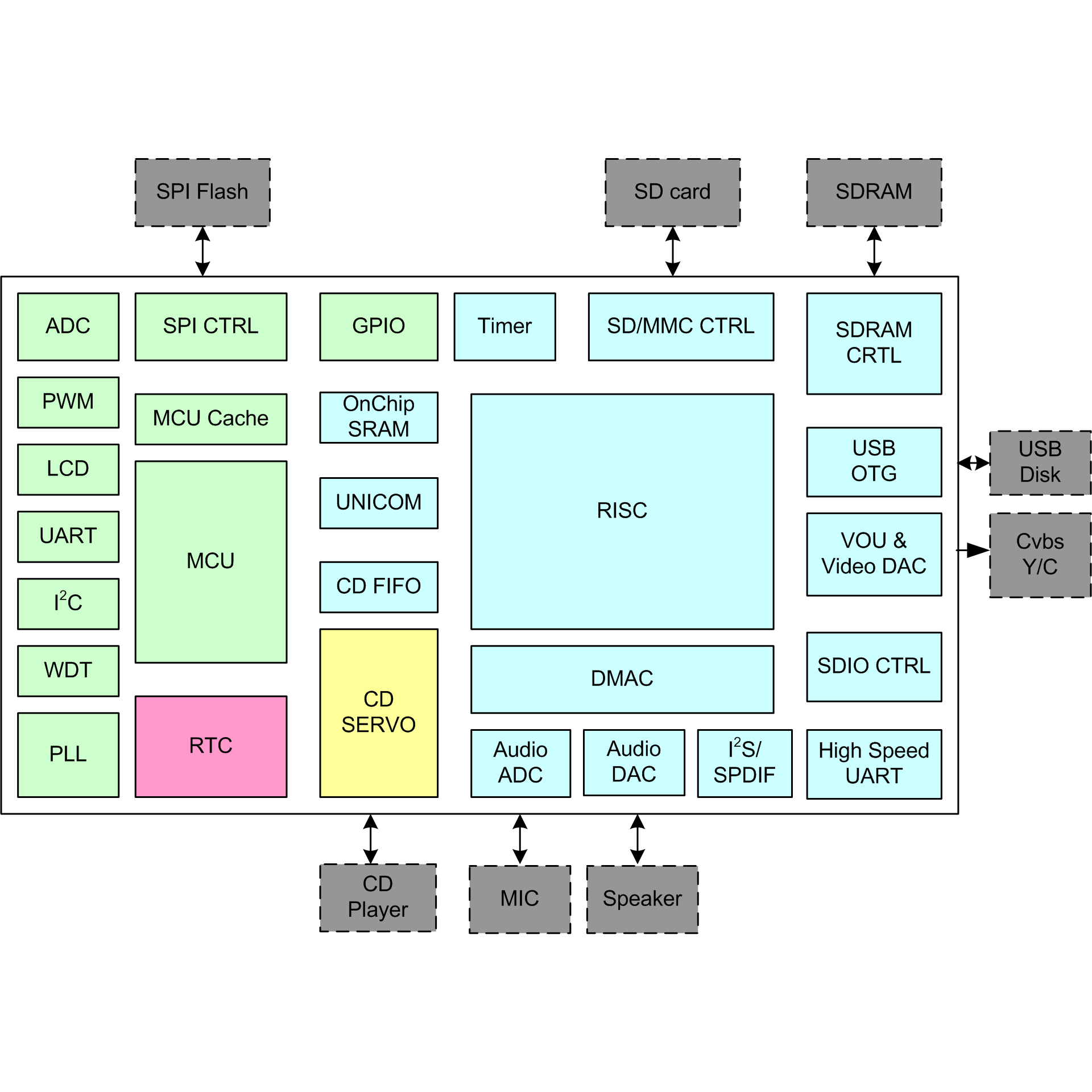

Architecture

• Dual-core structure formed by low power dissipation 8-bit MCU and high performance 32-bit RISC

• Performance of MCU core is 4 times better than traditional 51, the instruction set is compatible with traditional MCS-51 instruction set.

• CACHE+SPI structure , improves SPI flash access efficiency;

• MCU can control read-write of SPI flash when the Cache is locked;

• Internal RAM of MCU is 256 bytes, external RAM is 2K+512 bytes, the instruction space can be expanded to 8M byte through SPI flash,

• The built-in confidential storage unit supports program encryption in SPI flash;

• High-performance 32-bit RISC core, 6-level pipelines.

• Harvard Cache architecture with separate 8KB Instruction and Data Cache, single-cycle multiplication/accumulation operations, on-chip debugging (OCD) supported ;

• 32-bit instruction and data space, with MMU function, operating system supported;

Servo

• Integrated RF Amp, servo control and CDDA/CDROM decoder.

• Disc format:

• CD/CD-R/CD-RW physical formats;

• CD-DA, CDROM, and CDROMXA data formats;

• CD-TEXT function;

• Applications:

• Accessing from CLV 4X speed optical pickup unit;

• Electronic shock proof function;

• CD transcription for record while playing;

Clock & Power Manager

• External 32.768KHz and 12MHz oscillators;

• Built-in MCU PLL with 32.768KHz reference clock and System PLL12MHz reference clock, Audio PLL and USB PLL;

• Clock frequency division control, MCU is able to work at 9-level frequencies in range of 32.768KHz ~ 24MHz, while RISC at 15-level frequencies in range of 30MHz ~ 162MHz.

• Single 3.3V power supply, built-in DC-DC and LDO modules, provided to RISC and MCU cores.

• RTC separately powered, with calendar function, 256-byte RAM which can save information when the main circuit is power failure.

• Multi low-power operating modes supported, such as stop, powerdown mode.

Memory Controller

• Integrated 32KB OTP, used for program running, Rom data protection.

• SPI flash controller.

• SPI flash 1/2-wire modes;

• Firmware in SPI flash able to be upgraded, can starting program from SPI flash;

• MCU program is able to be run in SPI flash, debugging code downloadable;

• SDRAM controller.

• High-efficiency SDRAM Interface supports operation with 16-bit data.

• Supporting SDRAM low-power modes, such as self-refresh, power down, etc.

• Packaged with SDRAM die of 2M*16-bit;

Peripherals

• On-chip USB full/low speed controller, support host/device mode.

• 5 endpoints, three of which are of INOUT type;

• Integrated DMA , supports real-time transfer, interrupt transfer, bulk transfer, and control transfer

• Support USB wakeup and suspend;

• Support USB audio application;

• Integrated two SD/MMC/SDIO controllers, supporting SD/MMC/SDIO protocol, general SPI supported.

• Integrated high-speed UART controller.

• Up to 4Mbps baud rate, with 64-byte buffer, DMA controlled data stream transmission.

• Integrated two I2S control modules.

• Supporting sampling rate up to 24 -bit@192KHz;

• DMA-controlled data stream transmission;

• Supporting audio 5.1 channel out and 2.0 channel in/out.

• Integrated SPDIF output, sampling rate up to 24-bit@96KHz, DMA controlled data stream transmission.

• Integrated one-channel 18-bit DAC, analog output LINEOUT_R and LINEOUT_L.

• Integrated I2C host/slave control interfaces;

• Integrated 4-channel PWM outputs;

• Integrated 16-bit audio ADC.

• 3 channels, can be used for MIC input, supporting audio superposition and simple reverberation processing;

• Supporting saving the coded recorded data to SD or U disc;

• Integrated 8-channel 10-bit ADC, can be used as keys, supporting MCU wake-up function.

• Integrated 4*32 segment LCD drive controller.

• Integrated 4-channel video DAC, supporting CVBS and Y/C output simultaneously, or analog R\G\B output independently.

• Integrated digital video interface.

• Support BT656，BT601 standard format output;

• Support 24-bit RGB888 standard format output;

• Supporting driving for the 6.4, 7, 8 inch LCD digital screen;

• Integrated programmable GPIO, four-grade drive current configurable (2mA/4mA/8mA/24mA), pull-up or open-drain configurable.

Other

• Support ADPCM, MP3*, WMA*, LC-AAC*, OGG, FLAC*, APE* decode.

• Support ADPCM and MP3* encode.

• Able to embed EQ software.

• Supports various audio processing with software embedded, such as speed & pitch change or speed change without changing pitch for audio files in DISC, USB, SD card.

• Support embedded the Bluetooth protocol stack, supports profile such as A2DP, HFP, AVRCP, and PBAP.

• Support built-in noise suppression and echo cancellation algorithm to realize the Bluetooth voice communication function
