SC7CT27180
HIGH PERFORMANCE ANALOG OUTPUT MEMS MICROPHONE

SC7CT27180 is a high-performance, low power dissipation, top-ported, omnidirectional, analog output MEMS microphone with small SMD package. SC7CT27180 integrates acoustic sensor device, low noise input stage and output amplifier. SC7CT27180 features high sensitivity, high SNR and flat&wide frequency response.

Due to the low power, battery life of portable products is longer.  SC7CT27180 has internal RF suppression circuit and it is available in small package 2.75 x 1.85 x 0.95, compatible with SMT process. The voltage range is 1.5V~3.6V.


Main feature

  • Wide voltage range : 1.5~3.6V

  • high SNR: 65dBA

  • ultra low power dissipation: <120uA

  • Flat frequency response

  • Stable performance

  • Compatible with SMT process

  • Omnidirectional

  • 10000g high0G anti-surge

  • RF protection and  suppression

  • Package: 2.75 x 1.85 x 0.95


Ordering Information
Product Name Package form Marking Hazardous Substance Control Packing Type Remarks
SC7CT27180 2.75 x 1.85 x 0.95 無 Halogen free Tape & Reel

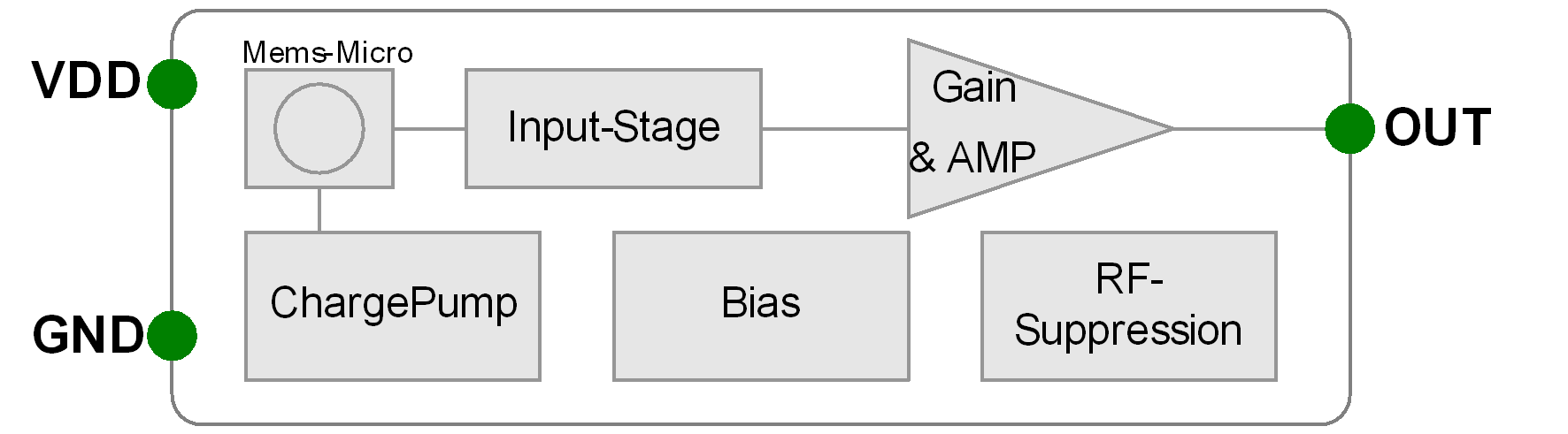

Block Diagram
