SDH7612ST
HIGH VOLTAGE START-UP ISOLATED LED CONSTANT CURRENT DRIVER IC WITHOUT VCC CAPACITOR

    The SDH7612ST is a high accuracy low cost primary side feedback LED constant current driver IC, it is applicable to flyback isolated LED illumination.

    The SDH7612ST works in inductor current discontinuous mode, it is suitable for 90Vac~265Vac input voltage.

    The SDH7612ST integrates high-voltage power MOSFET, has a built-in high-voltage start-up circuit, it can supply power independently without any startup resistor or auxiliary winding; the SDH7612ST does not need any external VCC capacitor, which greatly saves system cost.

    The SDH7612ST provides various protections, such as over voltage protection, over temperature fold-back current limit etc. which greatly improves the system safety and reliability.

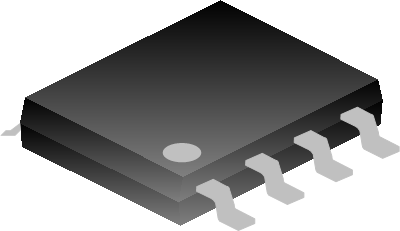

    The SDH7612ST is available in the SOP-7-225-1.27 package.


Main feature

  • ±3% LED output current accuracy

  • Built-in high voltage power MOSFET

  • Built-in high-voltage start-up module

  • No need for VCC capacitor

  • No need for loop compensation

  • LED open-circuit protection

  • High temperature current drop (Frequency reduction)

  • No auxiliary winding


Ordering Information
Product Name Package form Marking Hazardous Substance Control Packing Type Remarks
SDH7612ST SOP-7-225-1.27 / Halogen free Tube
SDH7612STTR SOP-7-225-1.27 / Halogen free Tape & Reel

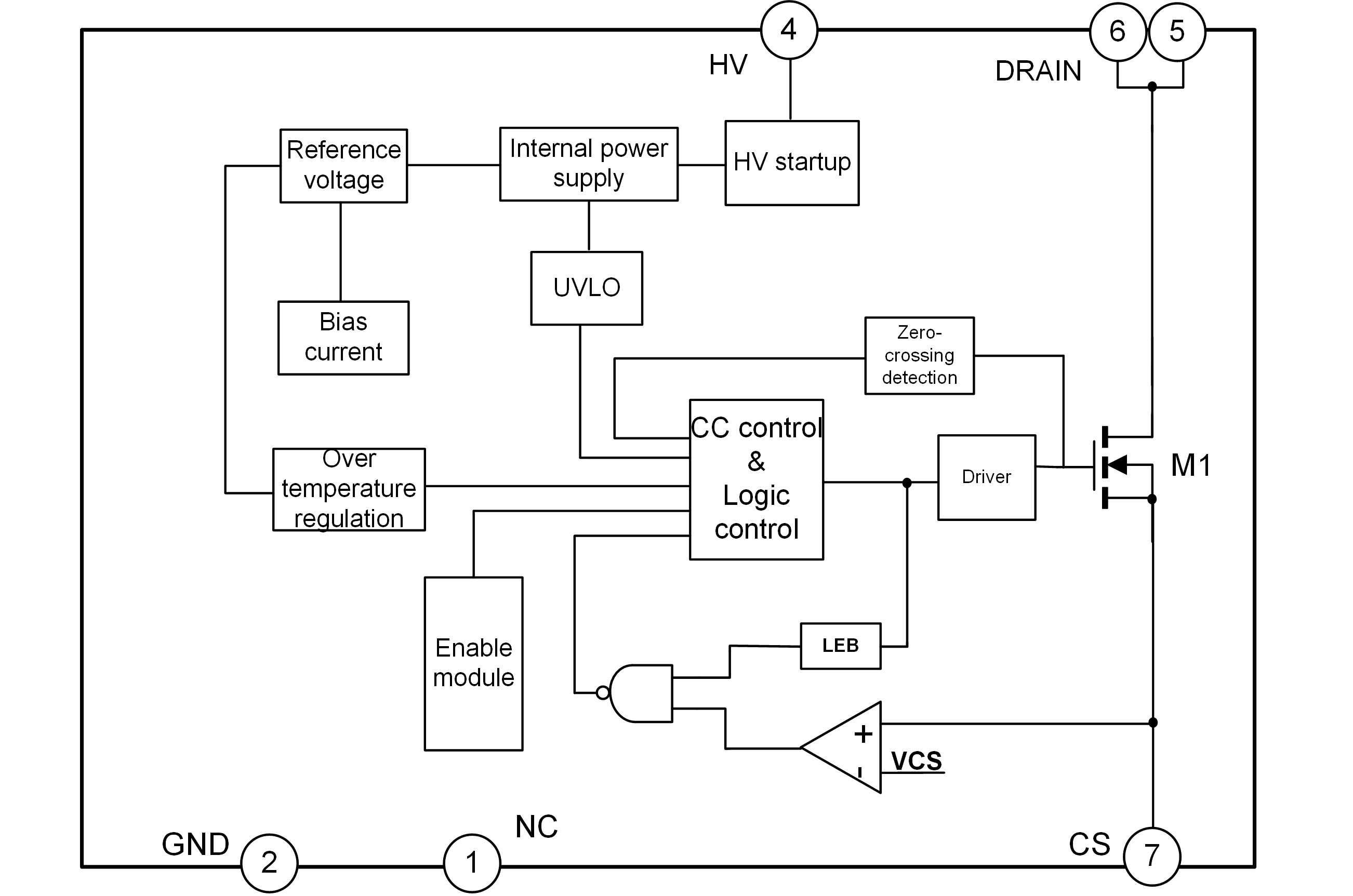

Block Diagram
