SLP74LVT245B
3.3V OCTAL BUS TRANSCEIVER WITH 3-STATE OUTPUTS

The SLP74LVT245B is a high performance bus transceiver. The device is designed for 2.7V to 3.6V VCC operation, but with the capability to provide TTL interface to a 5V system.

The device have eight independent line drivers with 3-state outputs. When the input of OE—. is high, the associated output is in the high-impedance state. The device transmits data from A to B or from B to A is dependent on the direction control pin (DIR).


Main feature

Octal bidirectional bus buffer

Output capability: +64mA and -32mA

TTL input and output switching levels

Input and output interface capability to 5V systems

Bus hold data inputs without the need of external pull-up resistors

No bus current loading when output is tied to 5 V bus

Live insertion and extraction permitted

Power-up 3-state

ESD protection:

  • 2000-V Human-Body Model

Latch up performance:100mA

Specified from -40°C to +85°C


Ordering Information
Product Name Package form Marking Hazardous Substance Control Packing Type Remarks

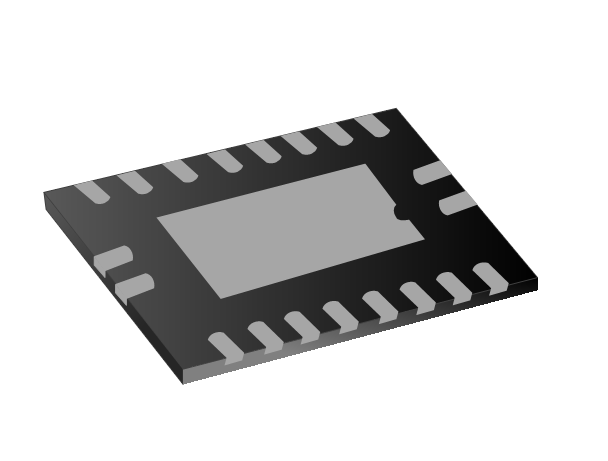

SLP74LVT245BNHTR QFN-20-4.5x2.5x0.85-0.5 LVT245B Halogen free Tape & Reel

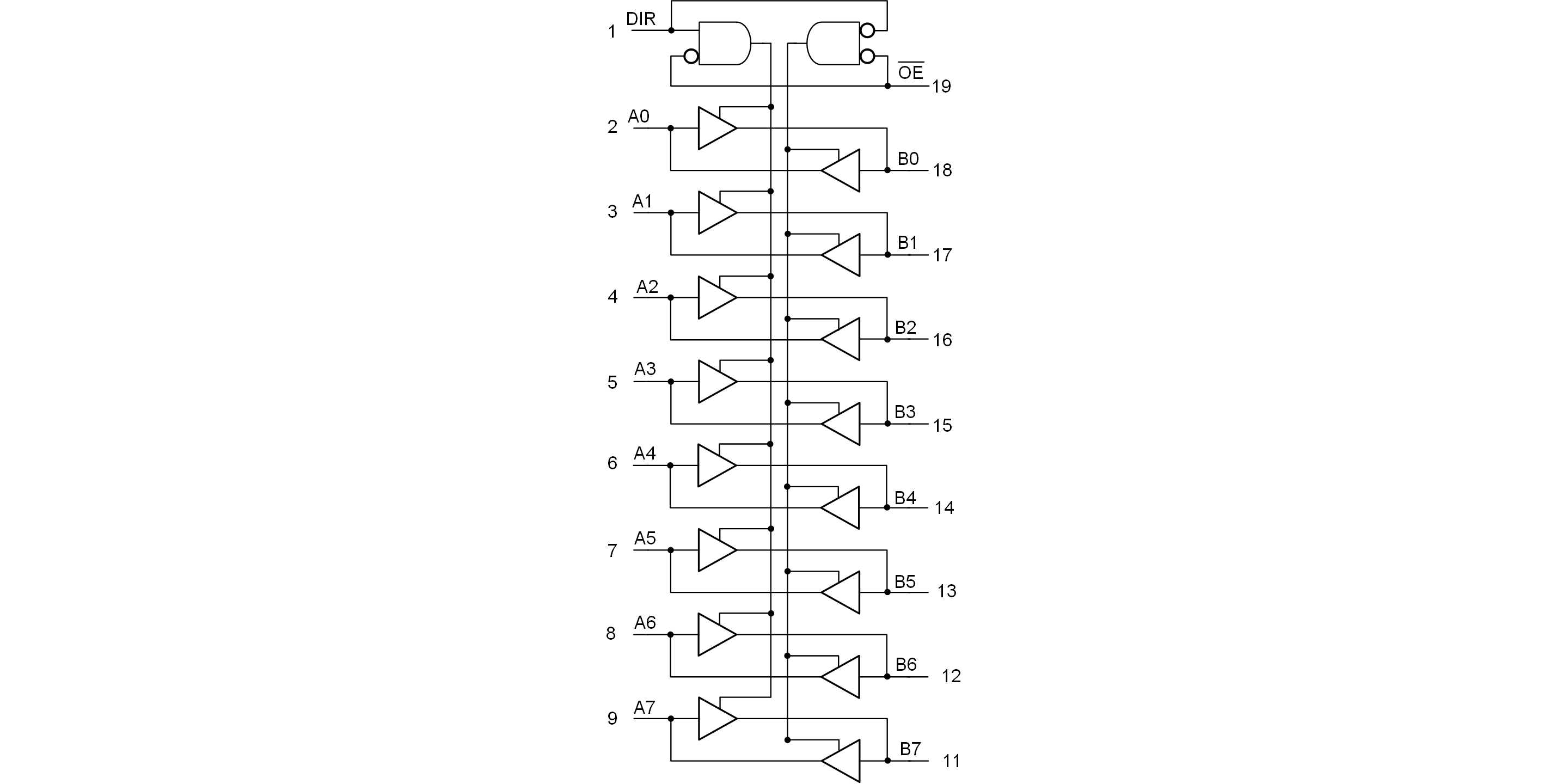

Block Diagram
