SLP74LVC3G14
TRIPLE INVERTING SCHMITT TRIGGER WITH 5V TOLERABT INPUT

    The SLP74LVC3G14 is triple inverting buffers with Schmitt trigger input.

    The SLP74LVC3G14 is capable of transforming slowly changing input signals into sharply defined, jitter-free output signals. Schmitt trigger action at the inputs makes the circuit tolerant of slower input rise and fall time. This device is fully specified for partial power-down applications using IOFF. The IOFF circuitry disables the output, preventing the damaging backflow current through the device when it is powered down.


Main feature

  • 5V tolerant input/output for interfacing with 5V logic

  • Balanced propagation delays

  • CMOS low power consumption

  • ±24mA output driver (VCC=3.0V)

  • ESD protection:

  • HBM Exceeds 2000V

  • CDM Exceeds 1000V

  • Latch-up performance exceeds 100mA

  • Specified from -40°C to +85°C and from -40°C to +125°C


Ordering Information
Product Name Package form Marking Hazardous Substance Control Packing Type Remarks

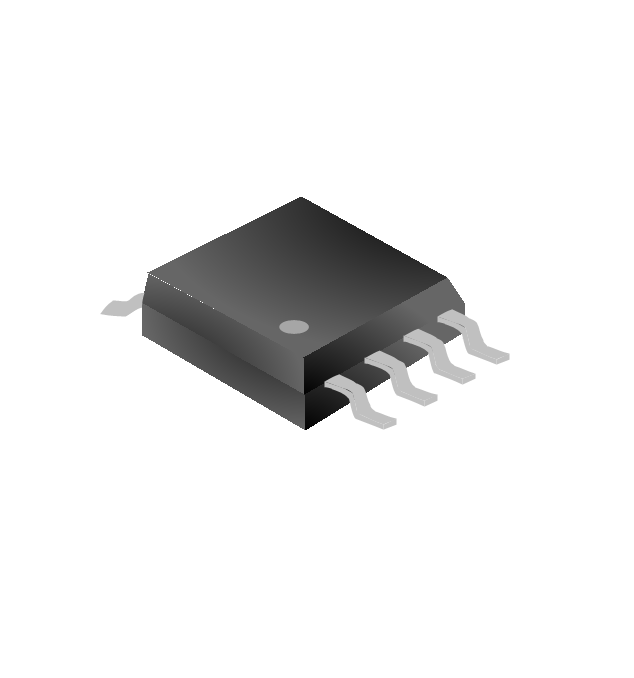

SLP74LVC3G14JWTR VSSOP-8-100-0.5 3G14 Halogen free Tape&Reel

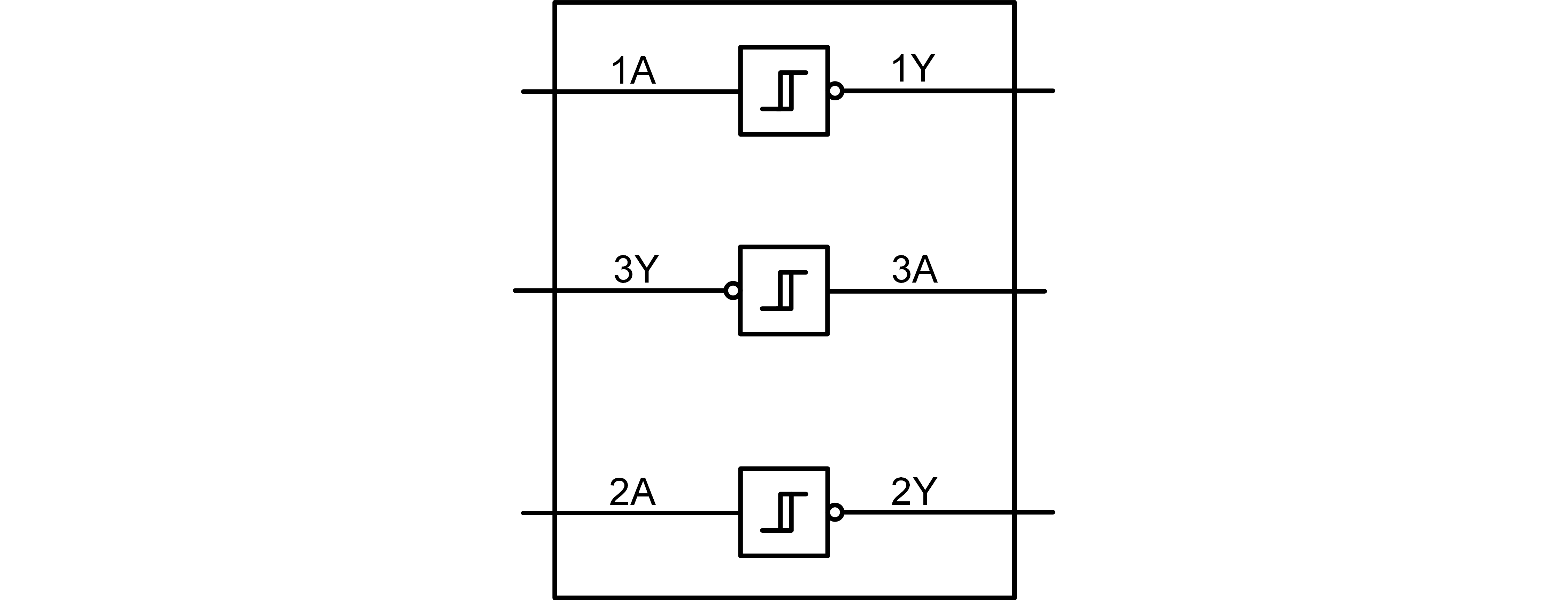

Block Diagram

SLP74LVC3G14 中英同（4500&1725）.png
