The SLP74ALVC164245 is a 16-bit (dual octal) dual supply translating transceiver featuring non-inverting 3-state bus compatible outputs in both send and receive directions. It is designed to interface between a 3 V and 5 V bus in a mixed 3 V and 5 V supply environment.

The device is designed for asynchronous communication between data buses. The control circuitry (1DIR, 2DIR, 1OE(——) and 2OE(——)) is powered by VCCA.

To ensure the high-impedance state during power up or power down, the output-enable (nOE(—— input should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the currentsinking capability of the driver.

The logic levels of the direction-control (nDIR) input and the output-enable (nOE(——) input activate either the B-port outputs or the A-port outputs or place both output ports into the high-impedance mode. The device transmits data from the nAn bus to the nBn bus when the B-port outputs are activated, and from the nBn bus to the nAn bus when the A-port outputs are activated. The input circuitry on both nAn and nBn ports always is active and must have a logic High or Low level.

Main feature

Wide supply voltage range:

3V port VCC(A) : 1.5V to 3.6V
5V port VCC(B) : 1.5V to 5.5V

Direct interface with TTL levels
Control inputs VIH/VIL levels are referenced to VCC(A) voltage
Inputs accept voltages up to 5.5V
5 V tolerant inputs/outputs for interfacing with 5V logic
ESD protection:

HBM exceeds 2000V
CDM exceeds 500V

Latch-up performance exceeds 250 mA
Specified from -40°C to +85°C and -40°C to +125°C

Ordering Information

Product Name	Package form	Marking	Hazardous Substance Control	Packing Type	Remarks
SLP74ALVC164245JZ	TSSOP-48-300-0.5	ALVC164245	Halogen free	Tube
SLP74ALVC164245JZTR	TSSOP-48-300-0.5	ALVC164245	Halogen free	Tape&Reel

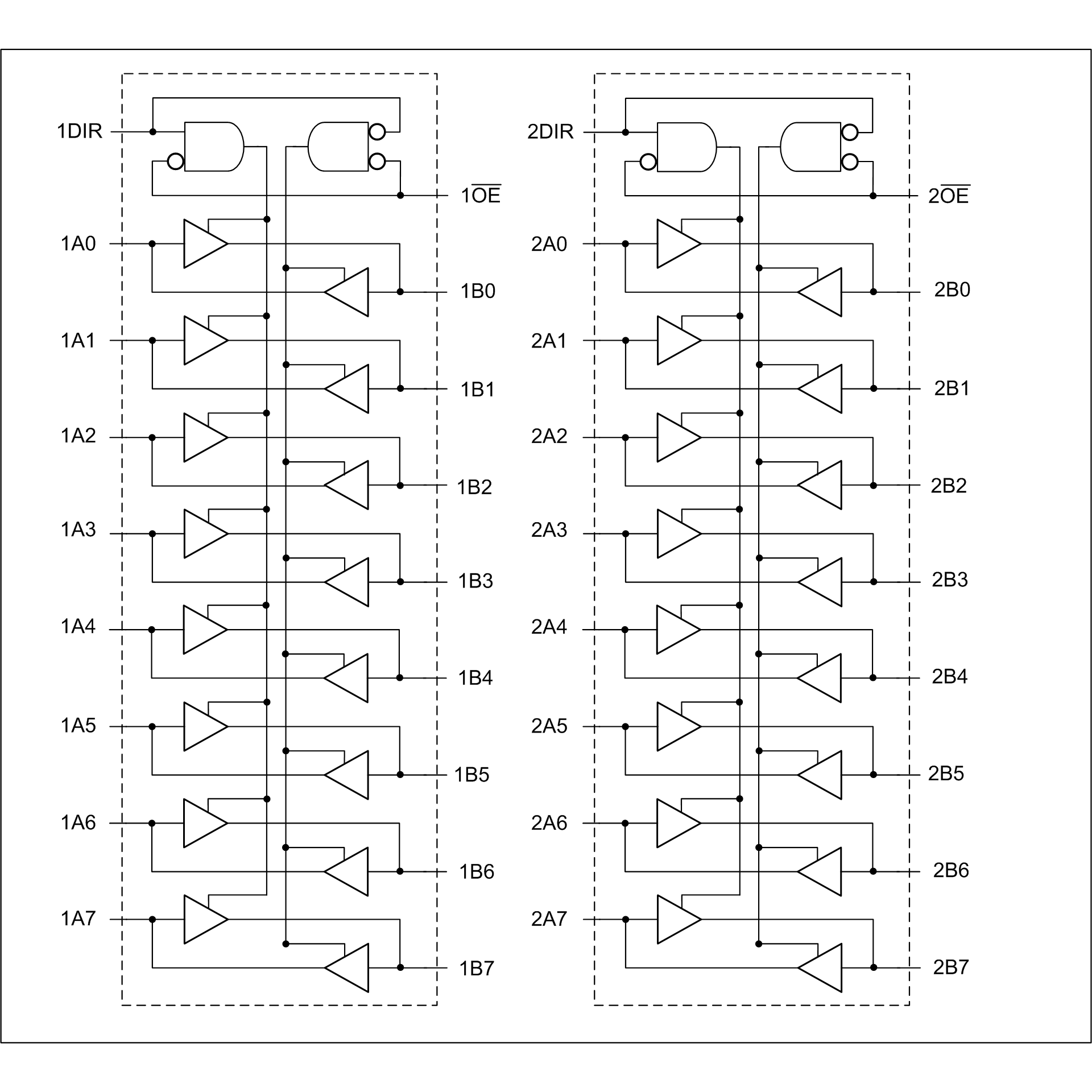

Block Diagram

Packages

TSSOP-48-300-0.5
