SLP74LVC1G125
BUS BUFFER/LINE DRIVER; 3-STATE


      The SLP74LVC1G125 provides one non-inverting buffer/line driver with 3-state output. The 3-state output is controlled by the output enable input (OE(————）. The output is disabled when the output-enable  (OE————） input is high.

     This bus buffer gate is designed for 1.65V to 5.5V VCC operation.

     This device is fully specified for partial power-down applications using IOFF. The IOFF circuitry disables the output, preventing the damaging backflow current through the device when it is powered down.


Main feature

  • Supports 1.65V to 5.5V VCC operation

  • Input accept voltages up to 5V

  • ±24mA output drive (VCC=3.0V)

  • CMOS low power consumption

  • ESD protection:

  • HBM exceeds 2000 V

  • CDM exceeds 1000 V

  • Latch-up performance exceeds 100 mA

  • Specified from -40°C to +85°C and from -40°C to +125°C


Ordering Information
Product Name Package form Marking Hazardous Substance Control Packing Type Remarks
SLP74LVC1G125KMTR SOT-353-5L SN Halogen free Tape & Reel
SLP74LVC1G125KBTR SOT-23-5L VG25 Halogen free Tape & Reel

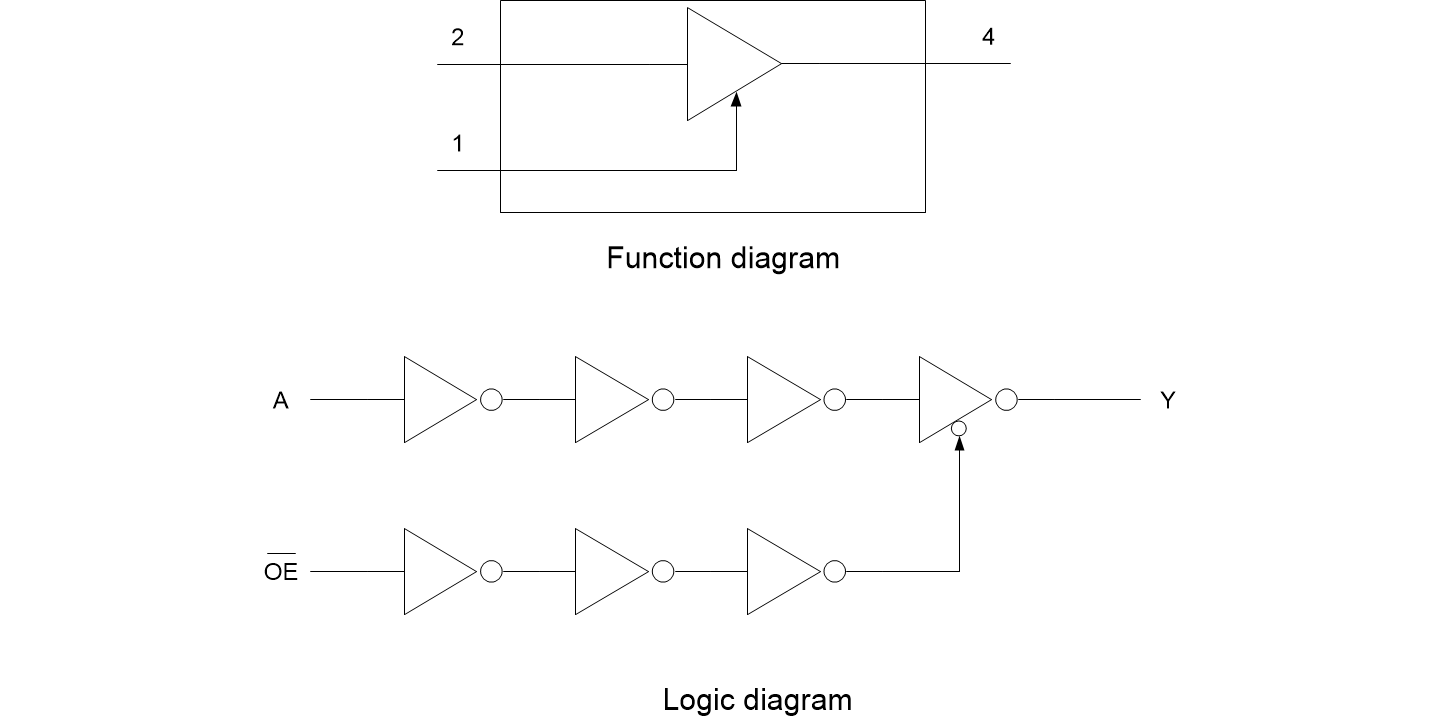

Block Diagram

SLP74LVC1G125 （1440&720）.png
