SC32F5632(64) series is a high-performance MCU specially developed for motor control and digital power supply. Using ARM Cortex-M0 core and built-in coprocessor can effectively accelerate the motor vector control operation. Multi-channel enhanced PWM is integrated on the chip. The 12-bit precision multi-channel ADC converter and the built-in high-performance operational amplifier can control the current accurately and obtain Superior cost performance. ETIMER can capture the motor hall signal in real time and accurately calculate the rotor position of the motor, which is very suitable for the development of the control system of electric two-wheelers.


Topology

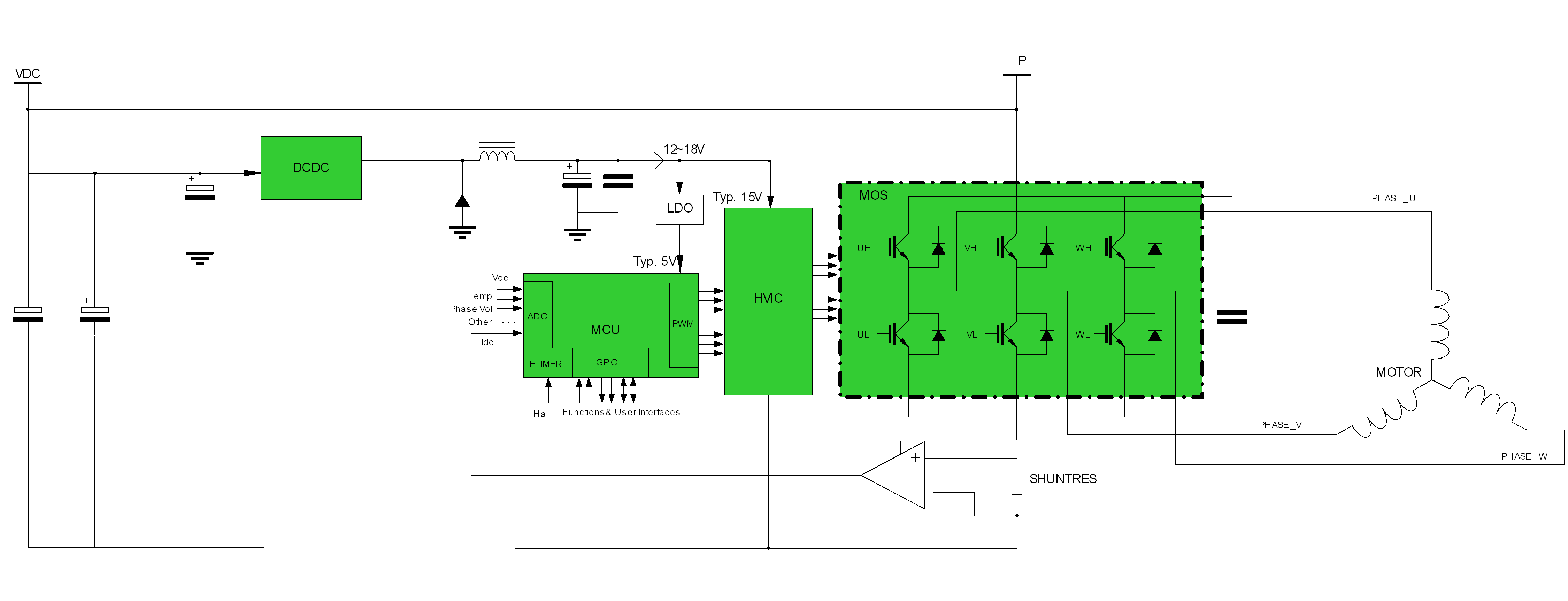

The typical topology of the control system of electric two-wheeled vehicle is as follows:


Product

Topological classification	product category	Typical product model	Typical package	product description
Gate Driver IC	Gate Driver IC	SDH21263	SOP-8-225-1.27	225V HIGH VOLTAGE HALF BRIDGE DRIVER
DC-DC Converter	DC-DC Converter	SD4938	SOP-8-225-1.27	150V CURRENT MODE PWM CONTROLLER

Application&Information

title	Types of	Size (KB)	date	Download the latest Chinese version
SilanPro_User Manual	PDF	3072	2020-04-03	SilanPro_User Manual_1.3
SilanPro_Precautions for Use	PDF	570	2020-04-03	SilanPro_Precautions for Use_1.0
